HART® Communication, Push Button Configuration, Rangeability (100:1)

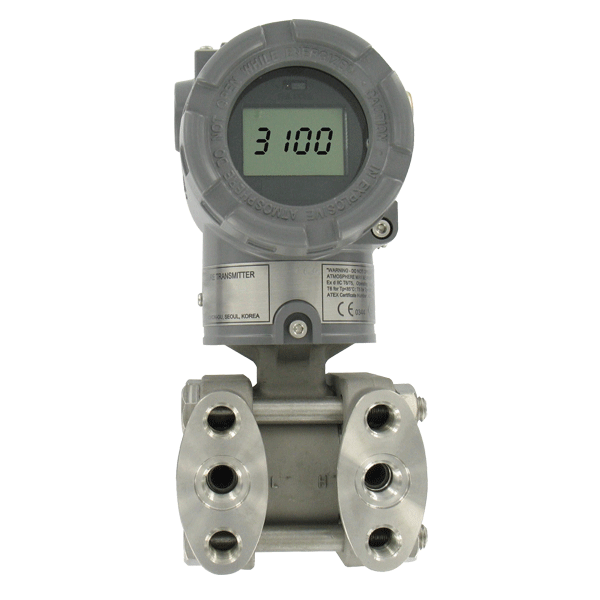

Mercoid®系列3100D智能压力变送器是一种基于微处理器的高性能变送器，具有灵活的压力校准，按钮配置，并使用HART®通信可编程。该系列3100D能够配置差压或水平应用程序的零点和跨度按钮。配置时不需要现场校准器。变送器软件补偿热效应，提高性能。EEPROM存储配置设置并存储传感器校正系数，以备停机或断电时使用。3100D系列是FM或ATEX批准用于危险(分类)场所。100:1量程允许智能变送器配置适合任何应用。
应用及案例
• Flow measurement
• Level monitoring
• Filter or pump differential pressure
• Critical process monitoring
产品特色
• Configurable using zero/span buttons means no calibrator required reducing time to install and running
• Range-ability and selectable engineering units, allows transmitter to fit many applications reducing the number of different transmitters to meet specifications
• High accuracy (±0.075%) provides exceptional measurement for ensuring tight control and minimizing costly out of specification conditions
• Automatic sensor temperature compensation improves performance of device for accurate measurement under different operating environments
• Fail-mode process function stores configuration settings in the event of shutdown or power-loss provides for faster restart to getting application back on-line
• A HART® Communication programmable device provides a reliable, long-term solution for plant operators who seek the benefits of intelligent devices with digital communication
